Fully Automatic Brazing Stand for Diamond Segments (RSHJ-1400/2400)

Product Introduction for Your Website

The RSHJ-1400/2400 Fully Automatic Brazing Stand is a specialized, precision-engineered machine designed for the high-efficiency brazing of diamond segments onto circular saw blades. It is the critical equipment for saw blade manufacturing and maintenance, ensuring diamond segments are securely and accurately bonded to the blade body.

This machine delivers consistent, high-strength welds, directly impacting the performance, durability, and safety of the finished diamond saw blades. It is the ideal solution for factories producing or servicing saw blades for stone cutting, construction, and mining.

✅ Precision Brazing for Superior Blade Performance

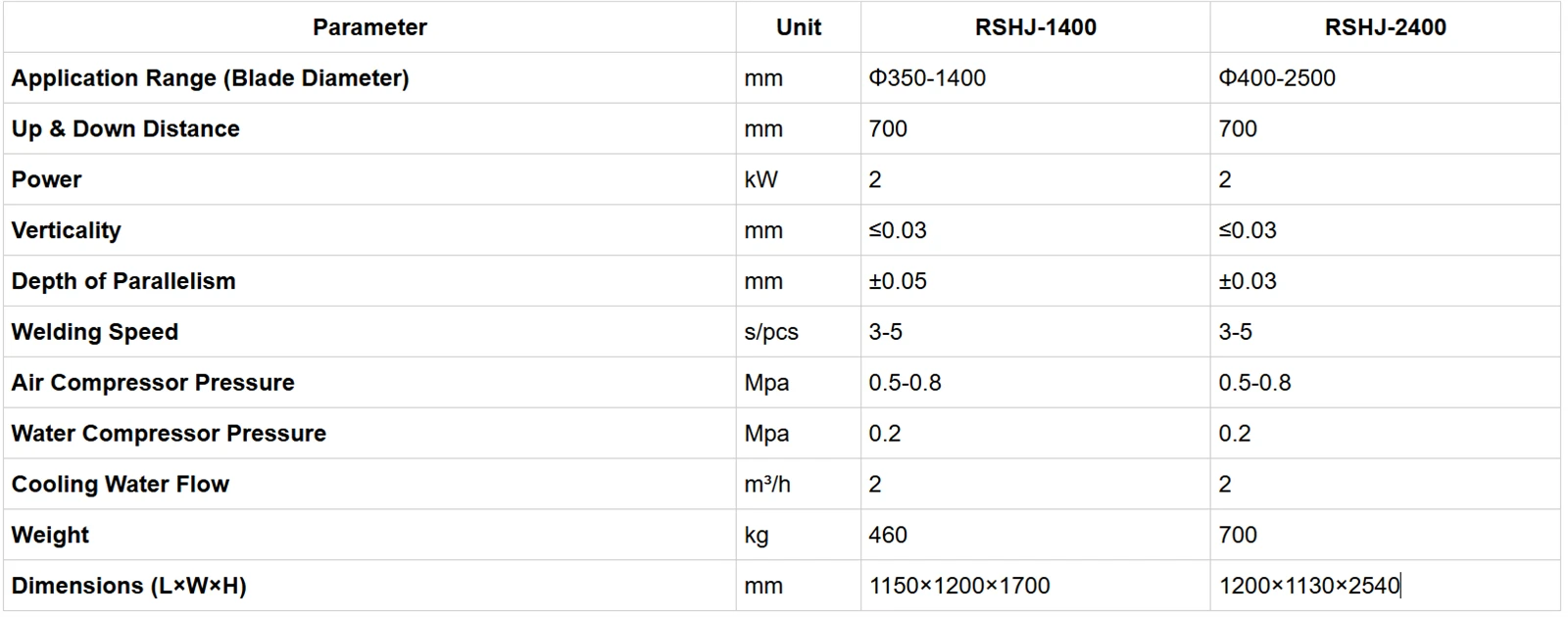

• The machine achieves high-precision alignment with a verticality tolerance of ≤0.03mm and parallelism of ±0.03-0.05mm, ensuring each diamond segment is perfectly positioned.
• This level of precision guarantees uniform cutting, reduces blade wobble, and extends the service life of both the blade and the segments.

✅ Fully Automatic Operation for Consistency & Efficiency

• The automatic process ensures consistent heat application and pressure for every weld, eliminating human error common with manual brazing.
• With a brazing speed of 3-5 seconds per piece, it significantly increases production throughput compared to manual methods.

✅ Wide Application Range

• Two models are available to cover a broad spectrum of blade sizes:

RSHJ-1400: For saw blades from Φ350mm to Φ1400mm.

RSHJ-2400: For saw blades from Φ400mm to Φ2500mm.

• This makes the machine versatile for manufacturing small to large saw blades used in various applications.

✅ Reliable Cooling & Power System

• A dedicated water cooling system ensures stable temperatures during the brazing process, preventing overheating and maintaining weld quality.
• The 2kW power system delivers consistent heat output, ensuring strong, durable bonds between the diamond segments and the blade body.

 Note: Other sizes can be customized according to requirements.

1. Saw Blade Manufacturing: Mass production of new diamond saw blades for stone, concrete, and asphalt cutting.
2. Blade Maintenance & Repair: Rebuilding worn saw blades by replacing damaged segments.
3. Custom Blade Production: Brazing segments onto custom-sized blades for specialized applications.

1. Precision Engineering: Built for accuracy, ensuring your saw blades meet the highest quality standards.
2. Automation: Reduces reliance on skilled labor and increases production output.
3. Versatility: Two models cover a wide range of blade sizes, adaptable to your specific needs.
4. Cost-Effective: Improves blade quality and longevity, leading to lower overall operating costs.
