RSPM-500 Single Head Bridge Polishing Machine

Independent Polishing Station For Custom Stone Makers & Tombstone Ateliers

Many small stone ateliers only take one-off, irregular custom jobs instead of mass standardized tile batches. Large multi-head continuous polishers are not practical for them - these big lines only turn profitable with consistent full-volume slab runs, while small shops often face intermittent orders, mixed slab sizes and unique shaped stone. This single-head bridge polisher is purpose-built for low-volume, diverse custom fabrication, delivering automated surface finishing without the heavy investment and high energy overhead of full production lines.

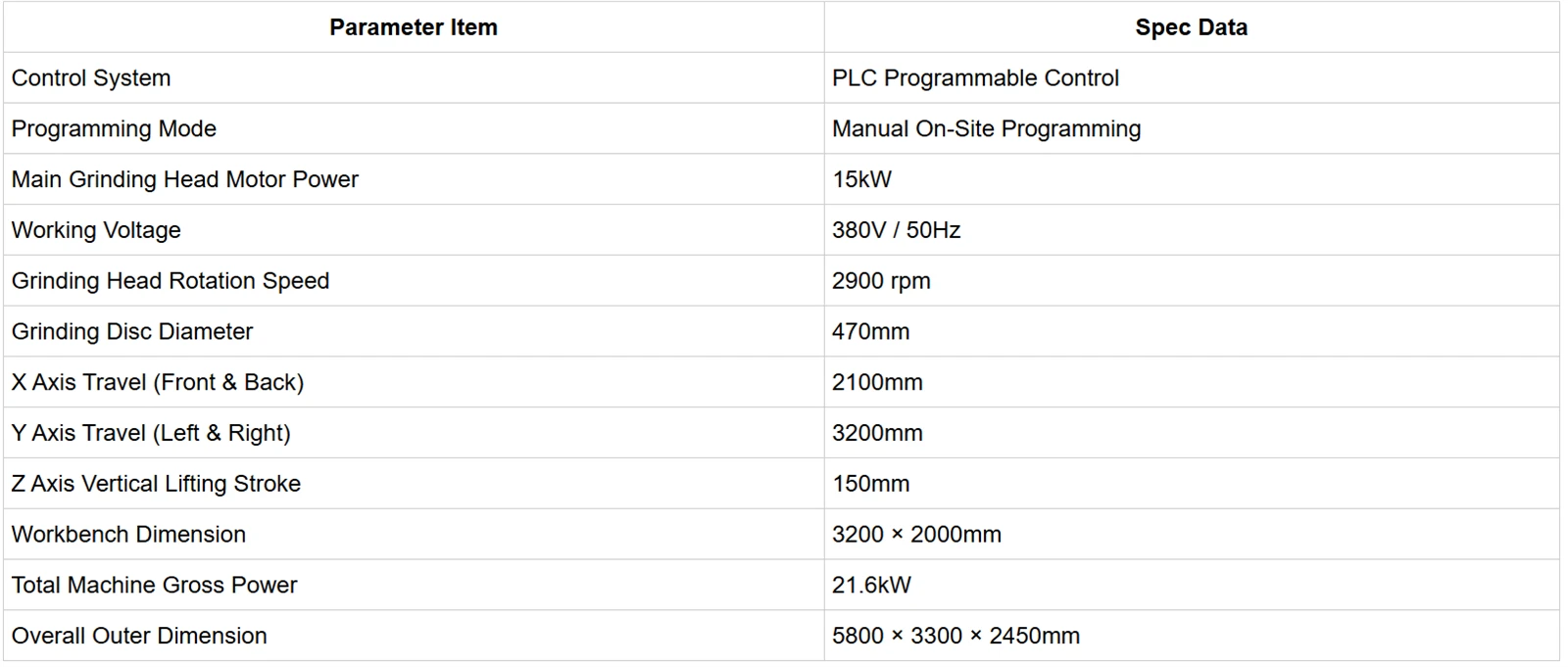

Full Technical Parameter Overview

Core Differentiators For Custom Stone Businesses

1. Low capital entry eliminates risk of idle production capacity

Multi-head polishing lines demand steady high daily output to offset purchase and running costs, making them uneconomical for small shops with fluctuating client orders. This standalone single-head unit costs far less to purchase and occupies minimal floor space. Operators only power it on when workpieces arrive, avoiding the continuous electricity waste of keeping an entire multi-station line running for sporadic small batches.

2. Customizable program paths handle non-uniform stone profiles

Unlike mass polishers that only run fixed full-slab back-and-forth routines, the onboard PLC allows workers to draw custom polishing paths on demand. The machine can execute full-face gloss finishing, targeted partial grinding for engraved portrait zones, curved border buffing and selective light sanding on uneven split stone. This flexibility lets ateliers accept high-margin bespoke work that large volume-focused factories decline.

3. Oversized 470mm polishing disc speeds up single-piece turnaround

Fitted with a wide-diameter polishing pad driven by a high-torque 15kW motor, each lateral pass covers far more surface area than compact small single-head grinders. At a steady 2900 RPM rotation rate, it achieves uniform mirror finish across both soft marble and dense hard granite, eliminating patchy dull areas that often require secondary hand touch-ups.

4. Full three-axis travel removes repeated heavy slab repositioning

The wide X/Y axis span accommodates oversized finished slabs up to 3.2 meters long, paired with 150mm vertical lift clearance for thick raw blanks. Once a slab is secured on the table, the grinding head reaches every section of the workpiece automatically. Staff no longer need to manually lift and re-align heavy polished stone mid-process, cutting physical strain and surface scratch damage.

5. Reinforced cast support frames maintain flawless finishing quality

The two separate heavy cast side stands absorb high-frequency vibration generated by the fast-spinning grinding head. Unlike thin welded frames that wobble and leave rippled slab surfaces, this rigid structure delivers consistent flat gloss even during all-day intermittent shifts. Minimal regular calibration is needed, cutting daily maintenance work for shop staff.

Target Client Groups & Typical Working Scenarios

• Local custom countertop workshops producing made-to-measure kitchen stone, window sills and stair treads with random variable sizes
• Independent tombstone studios that need selective fine polishing for portrait areas, engraved text zones and decorative curved borders
• Small landscape and culture stone producers making uneven split-face wall cladding and garden ornamental stone pieces
• Mid-sized stone suppliers that receive scattered small client orders, lacking steady throughput to operate large multi-head polishing lines full-time

Visible Economic Benefits For Workshop Operators

1. Reduce equipment idle loss: Only start the single machine when orders arrive, avoiding the energy waste of running full multi-head lines for small batches.
2. Expand business scope: Support polishing of irregular and special-shaped stone to take high-margin custom orders that mass polishing factories reject.
3. Cut manual polishing labor: Fully automatic reciprocating grinding replaces handheld manual polishing tools, lowering staff physical labor and polishing inconsistency caused by human fatigue.
4. Space-saving layout: Compact overall size adapts to small factory venues, no need for large-area workshop transformation to place large continuous polishing equipment.
