Permanent Magnet Diamond Wire Saw Machine Series (RS-55D-YC / RS-75D-YC / RS-83D-YC)

Intelligent Energy-Saving Wire Cutting Equipment For Open Pit Quarry Profiling & Block Trimming

Traditional asynchronous motor wire saws suffer from severe idle power loss, unstable torque fluctuation and limited remote monitoring capacity, which bring high electricity expenditure and blind operation risks to mine sites. This permanent magnet synchronous diamond wire saw series upgrades core drive and control architecture, integrating IoT remote monitoring, dual-mode touchscreen operation and wireless handheld remote control. Three power tiers are offered to match marble soft rock and hard granite mining demands, designed for quarry contour forming, oversized raw block edge trimming and special-shaped stone blank cutting.

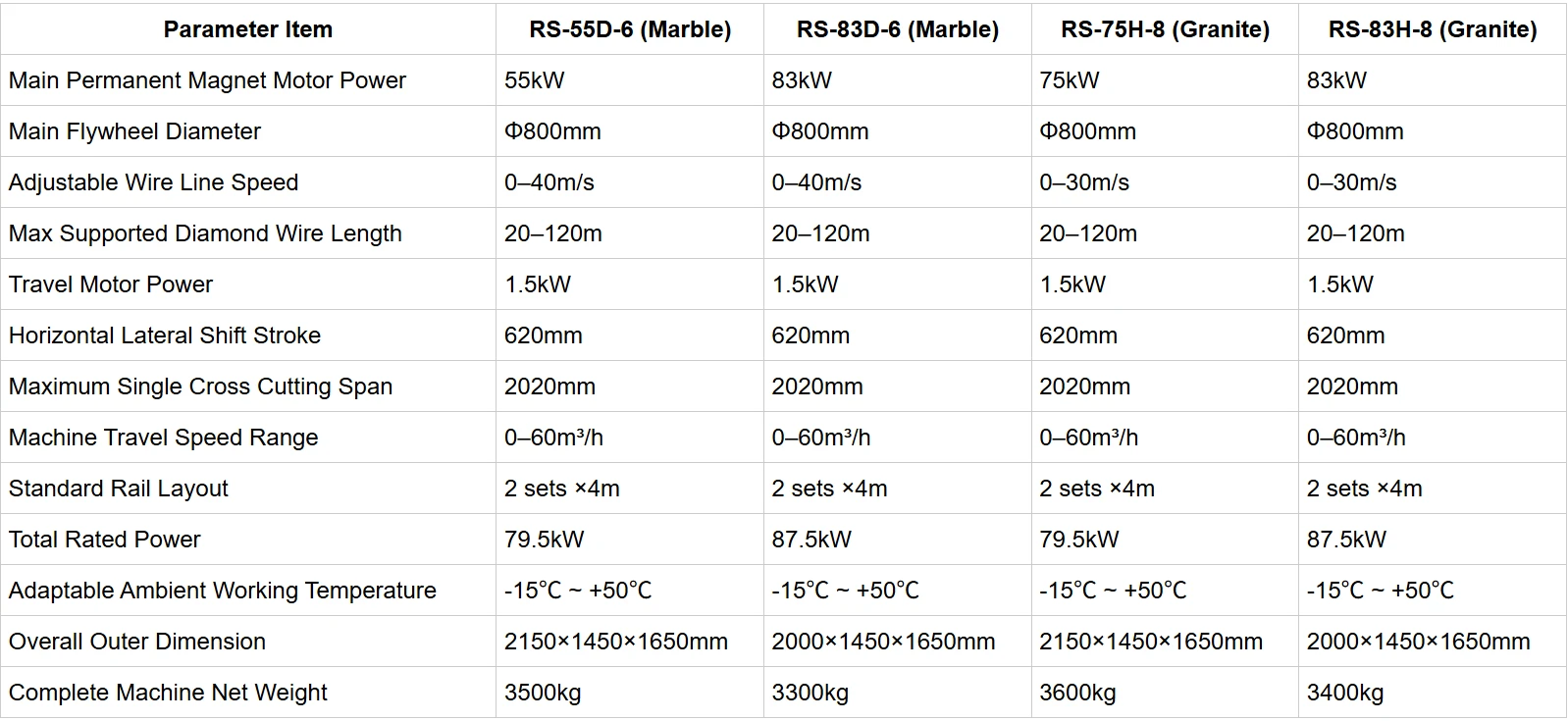

Full Model Technical Parameter & Application Targets

Model Power & Stone Material Differentiation

1. 55kW & 75kW Mid-Tier Permanent Magnet Versions Cost balanced energy-saving configuration, ideal for medium-sized mines with mixed marble and medium-hard granite raw materials. Stable torque output reduces wire breakage frequency, and moderate total power effectively cuts daily electricity bills for round-the-clock mining shifts.
2. 83kW Heavy-Duty High-Torque Permanent Magnet Versions Flagship high-power permanent magnet motor, specially customized for ultra-dense hard granite quarries. Sustained high torque output avoids speed drop under heavy cutting load, shortening single-block trimming cycle and maximizing daily mining volume for large-scale export-oriented mines.
3. Dedicated grouping for marble / granite working condition: Marble models support higher wire running speed to lift soft rock shaping efficiency; granite variants adopt restricted stable low speed to extend diamond wire service life against hard mineral abrasion.

Unique Intelligent & Energy-Saving Core Advantages

1. Permanent Magnet Synchronous Drive Cuts Power Consumption Greatly

Compared with conventional asynchronous wire saw motors, the permanent magnet structure eliminates reactive power loss during standby and low-load operation, reducing comprehensive power consumption by around 20% for long-hour continuous mining. Constant torque output at variable speeds avoids saw line jitter caused by insufficient power, lowering abnormal breakage loss of expensive diamond wire consumables.

2. Dual-Mode PLC Touchscreen Control + Wireless Handheld Remote Operation

Two independent operation modes are integrated to fit diverse on-site mine workflows:

• Cabinet touchscreen + physical button dual control panel: Real-time display of wire speed, travel position, equipment running data, supports one-click storage of frequently used cutting programs;
• Portable industrial wireless remote controller: Operators can stand beside rock blanks to observe cutting progress, trigger emergency stop and adjust travel speed without walking back to the main control cabinet, greatly improving field operation safety and convenience.

3. Built-In IoT Module Realizes Remote Equipment Supervision

Equipped with original Internet of Things data transmission module, mine managers can remotely view real-time operating status, historical production data, equipment fault codes and cumulative output through mobile terminals or office computers. Abnormal running parameters trigger automatic early warning, realizing predictive maintenance and reducing unplanned production downtime caused by sudden equipment failure.

4. Top-Tier Brand Electrical Components Guarantee Stable Outdoor Operation

All core electrical control parts adopt well-known domestic and international certified brands, with anti-dust, anti-low-temperature and high-temperature resistance optimization. The whole machine can run stably from minus 15 degrees cold mountain winter to 50 degrees open-air high-temperature summer, without frequent electrical circuit breakdowns in harsh mine site environments.

5. Flexible Track Travel + Horizontal Shift Design Improves Site Adaptability

4-meter dual group linear tracks cooperate with 620mm horizontal lateral displacement stroke, allowing the machine to complete multi-position continuous contour cutting without repeated disassembly and relocation. The maximum 2020mm cross cutting span covers mainstream mine raw block sizes, cutting auxiliary handling time and boosting single-shift finished qualified block yield.

Main Target Application Scenarios

1. Open-pit marble & granite quarries: mountain contour shaping, oversized raw block edge trimming, waste rock separation
2. High-value special stone processing factories: curved monument blanks, circular landscape stone, arc decorative stone forming
3. Large mining industrial parks with digital intelligent management demands, requiring remote real-time production monitoring
4. Export stone raw block suppliers with strict cost control targets for long-term energy and consumable expenditure

Long-Term Economic Value For Mine Operators

1. Slash recurring electricity costs: Permanent magnet energy-saving drive creates obvious long-term power savings for mines running three shifts all year round.
2. Reduce diamond wire consumable loss: Stable constant torque minimizes wire breakage accidents, lowering monthly diamond wire procurement expenditure.
3. Digitized management lowers site labor input: IoT remote monitoring reduces daily equipment patrol manpower, and wireless remote operation cuts on-site staff allocation.
4. Wide material & specification compatibility: Three power models match soft marble and hard granite mining separately, mine owners can select targeted configurations according to local rock characteristics to avoid redundant power investment.
