Bridge Slab Cutting Machine

The bridge infrared slab cutting machine adopts an advanced computer operating system to realize automated workflow. The tool movement, cutting speed and angle are precisely controlled through a computer program to ensure a highly accurate cutting process. Its automation features simplify the operation process, realize automatic work through preset parameters, and greatly improve production efficiency. The computer operation interface is friendly and easy to understand, making it easy for operators to master and use. The equipment uses infrared technology and can be adapted to different plate materials, providing a precise, efficient and automated solution for stone processing.





Product name	Unit	RS-400	RS-600	RS-700
Blade diameter	mm	400	600	700
Max working dimensions(LxWxH)	m	3.2x2.0x0.18	3.2x2.0x0.19	3.2x2.0x0.24
Size of worktable	m	3.2x2.0
Worktabl titing degree	n°	0°~85°
Worktabl rotation range	n°	0°~90°/0°~360(Positioning every 45°)
Wate consumption	m3/n	3.5	3.5	4
Main motor power	kw	15	18.5	18.5
Total power	Kw	21	24	24
Weight	Kg	6400	6600	7000
Oveiall dimensions(LxWxH)	m	6.0x4.7×3.1	6.0x4.7x3.1	6.0x4.7x3.3

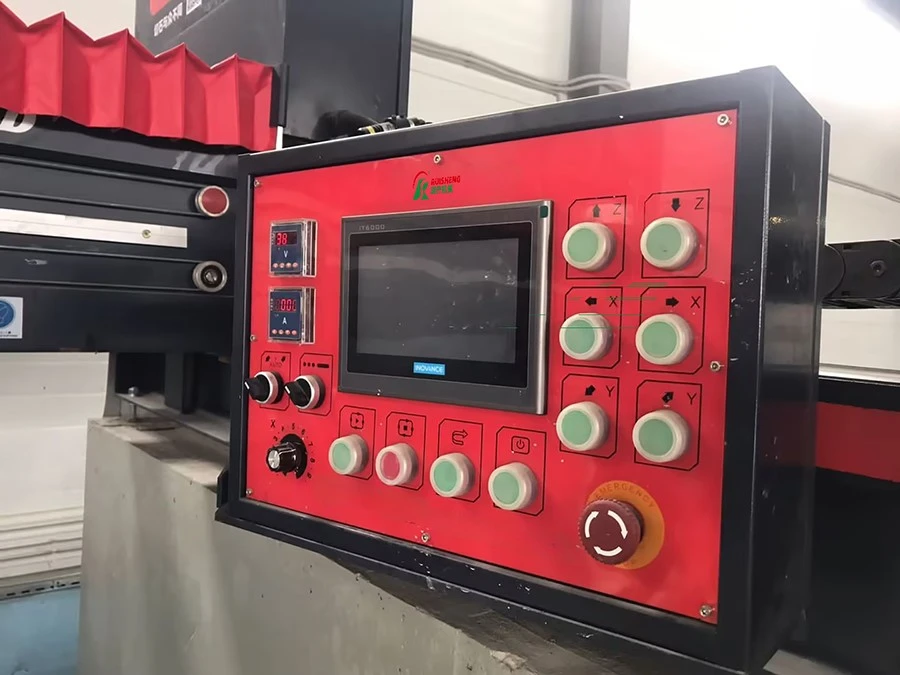

Slab cutting machine is controlled by PLC programmable controller and human-machine operation interface. Equipped with frequency converter and servo motor to make cutting movement smoother.

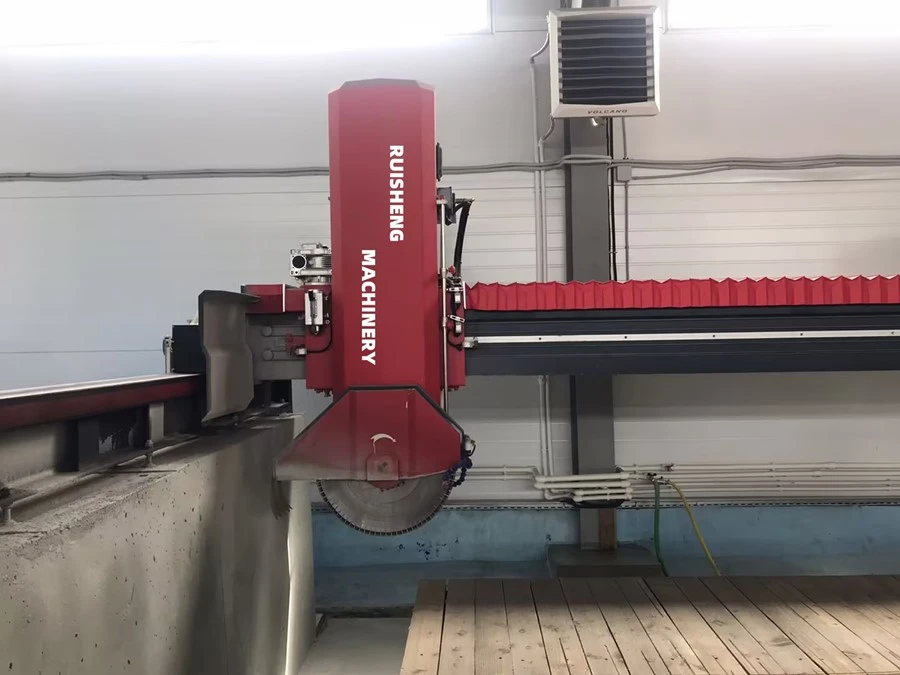

The lifting structure uses a servo motor with chrome-plated guide posts and wear-resistant guide bushes. The matching gap is small, wear-resistant and beautiful. Designed with multi-layer sealing, it is waterproof, dustproof and oil leakproof, enabling rapid lifting and extending service life.





Stone slab cutting machine using infrared laser devices achieve accurate positioning of the slab through precise laser technology. The laser device can project infrared rays with high precision, accurately calibrate the position and edges of the slab, and ensure accurate cutting positioning. This technology can provide precise guidance during the cutting process, making the cutting path accurate and reducing errors and waste. The application of infrared laser devices effectively improves cutting accuracy and production efficiency, making large plate cutting work more accurate, efficient and reliable.
