Permanent Magnet 4-Wheel Twin Disc Quarry Extractor

Low Operating Cost Rock Cutting Gear For Commercial Open-Pit Mining Sites

For mine managers running year-round three-shift quarry work, two persistent cost drains limit profit margins: excessive power draw from outdated induction motors, and frequent production halts to swap degraded drive belts. Older dual-wheel mining cutters also struggle on unlevel mountain rails, veering off course and generating large volumes of unmarketable irregular rock scrap each month. This redesigned twin-disc quarry extractor re-engineers its entire power transmission and travel mechanism, prioritizing long-run energy savings and minimal routine service work. Five distinct frame sizes accommodate startup small quarries through large-scale mineral yards serving overseas stone importers. Cutting width and vertical penetration depth can be tailored to match unique local rock layer structures and target raw block dimensions.

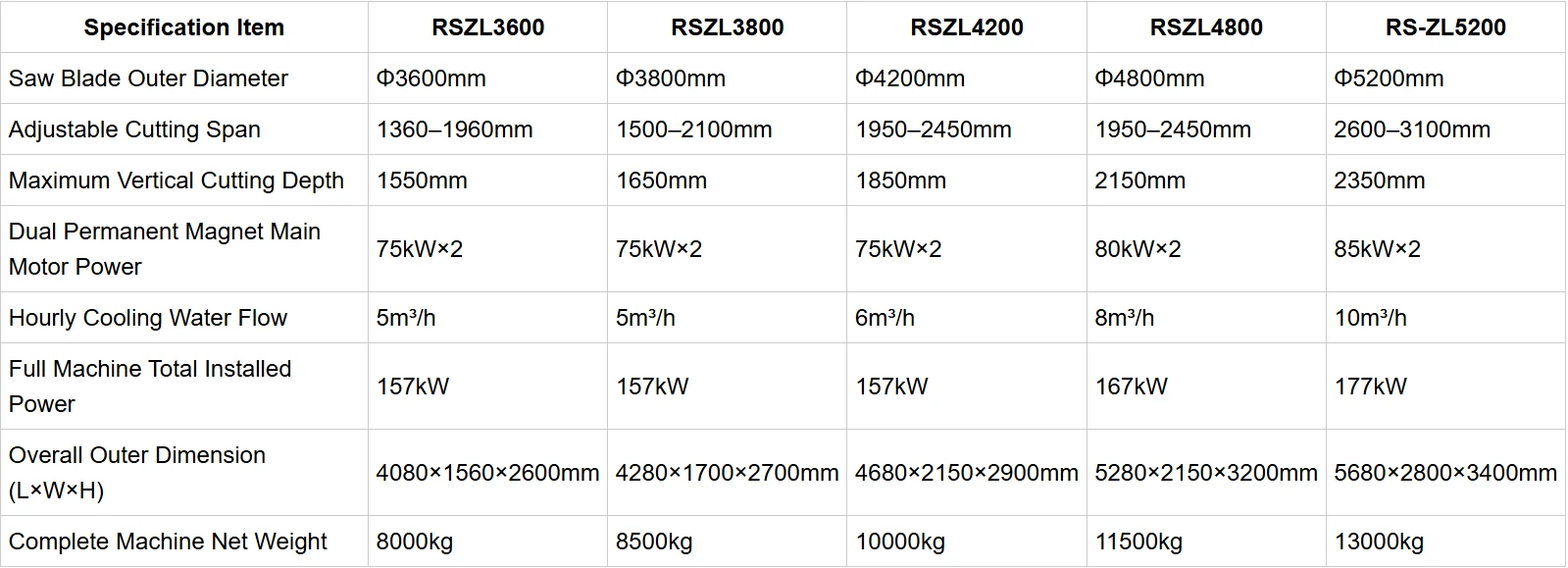

Full Model Technical Data & Quarry Positioning Matrix

Model Segmentation Based On Quarry Operation Scale

1. Compact Entry Series: RSZL3600 & RSZL3800 Lightweight chassis built for newly opened small layered quarries extracting soft marble and low-density granite deposits. The paired dual 75kW permanent magnet drive motors deliver measurable electricity savings compared to legacy induction motor equipment. This variant fits mine operators working within tight initial capital limits with modest daily raw block output targets.
2. General-Purpose Mid-Size Workhorse: RSZL4200 Balanced cutting range and power output designed for medium family-run granite quarries supplying local domestic slab processing facilities. Its moderate penetration depth and cross-span range handle nearly all mainstream domestic stone varieties, striking a balanced tradeoff between upfront equipment investment and daily rock extraction throughput.
3. Heavy-Duty Export Specialized Units: RSZL4800 & RS-ZL5200 Fitted with upgraded high-torque 80kW / 85kW permanent magnet motors and oversized cutting discs, these flagship units support ultra-wide cross cutting spans and a maximum vertical cutting reach of 2350mm. Their heavy 11.5–13 ton chassis paired with four synchronized drive wheels eliminates sliding risks on rough, unpolished mountain tracks. These machines are exclusively developed for large mineral production yards manufacturing premium oversized raw blocks for cross-border construction material supply contracts.

Differentiated Core Functional Advantages For Continuous Shift Mining

1. Permanent magnet motor core eliminates idle power waste across nonstop shifts

Traditional induction motors consume large volumes of useless reactive power during standby and light-load cutting cycles, inflating monthly utility expenses for quarries operating 24/7 three-shift schedules. This permanent magnet drive architecture eliminates idle power loss entirely, trimming annual overall energy consumption by roughly 20%. It maintains steady, consistent torque across all rotational speeds without speed drops when slicing dense hard granite, slowing premature abrasion of costly diamond cutting segments and extending the usable service life of each full set of mining saw discs.

2. Hardened gear direct drive removes recurring belt replacement downtime

This rock extractor abandons the unreliable elastic belt power transfer setup fitted on outdated mining machinery. Heavy-duty hardened gearboxes transmit full motor torque to both twin cutting discs with zero power attenuation or slipping under heavy rock cutting loads. On-site mine crews no longer need to halt production frequently to swap worn drive belts; gear assemblies deliver multi-year service lifespans, erasing repeated spare part overhead and maximizing effective daily rock extraction working hours.

3. Four-point synchronized travel chassis eliminates track drift and rock scrap waste

Legacy twin-wheel mining cutters feature unbalanced weight distribution, triggering tilting, sliding, and uneven cutting kerfs on rough unrefined mountain rails. Four matched drive wheels evenly disperse the full machine chassis weight, locking in perfectly straight, parallel cutting paths even during deep heavy-load rock extraction. Clean, uniform cutting seams drastically lift the yield rate of sellable finished raw blocks and maximize utilization of mountain mineral reserves for quarry operators.

4. Fully configurable cutting dimensions match unique site geological conditions

All five machine chassis sizes support custom adjustments to cross cutting span and vertical penetration depth, tailored to each quarry's distinct rock layer thickness and preferred finished raw block dimensions. Mine owners avoid two costly drawbacks: overinvesting in oversized cutting capacity that remains unused, or being restricted by undersized working ranges that cap daily rock extraction flexibility.

5. Load-calibrated tiered cooling water circulation extends saw disc service lifespan

Every machine frame size is pre-calibrated with a dedicated hourly water flow volume matched to its typical rock cutting load. Small compact entry units run low-volume 5m³/h water circulation for shallow light-duty mining work, while the top-tier RS-ZL5200 heavy flagship unit upgrades to 10m³/h high-flow cooling circulation. Continuous water flow rapidly dissipates friction heat and flushes abrasive rock dust away from cutting contact zones, preventing high-temperature thermal burnout of diamond segments and lowering long-term recurring spending on replacement mining saw discs.

Quantifiable Long-Term Financial Advantages For Mine Owners

• Sustained reduction in power overhead: Permanent magnet energy-saving drive delivers consistent electricity cost cuts for mines operating three production shifts every day of the year.
• Lower recurring maintenance outlay: Gear transmission removes regular belt purchases and production downtime losses linked to belt replacement work.
• Reduced mineral resource waste: Stable anti-slip straight-line cutting minimizes misshapen, discarded rock scrap with uneven kerfs.
• Flexible tiered investment matching: Five graduated machine sizes plus fully customizable cutting dimensions suit brand-new small quarries and large high-output industrial mining bases alike, eliminating unnecessary overspending on redundant cutting capacity.

Primary Applicable Mining Production Scenarios

• New small family-operated quarries focused on layered marble and low-hardness granite extraction
• Mid-sized commercial open-pit granite mines supplying regional domestic stone slab processing workshops
• Large industrial mining facilities specializing in high-value oversized raw block manufacturing for overseas construction material export contracts
• Mountain quarries with uneven temporary rails that trigger frequent sliding and directional drift on standard two-wheel mining equipment
• Established mine operators seeking energy-efficient equipment upgrades to reduce annual power consumption and utility overhead
